The continuous evolution of metropolitan infrastructure demands highly sophisticated solutions for vertical transportation. At the forefront of this architectural revolution is the MRL Elevator Traction Machine | Bar Shaped Traction Motor, an engineering marvel meticulously designed to redefine spatial efficiency and mechanical performance. As developers increasingly prioritize maximizing rentable square footage, the integration of ultra-compact elevator components becomes an absolute necessity. Traditional bulky hoisting machinery is rapidly being supplanted by this innovative bar-shaped configuration, which perfectly aligns with the stringent geometric requirements of contemporary Machine Room-Less (MRL) elevator systems.

Fundamentally, the revolutionary geometry of the MRL Elevator Traction Machine | Bar Shaped Traction Motor facilitates unprecedented installation flexibility. By elongating the motor's internal stators and rotors into a slender, cylindrical "bar" profile, engineers have successfully minimized the cross-sectional diameter required within the hoistway. This profound structural advantage allows the machinery to be mounted directly alongside the guide rails or seamlessly integrated into the narrow shaft overhead. Consequently, the mechanism can efficiently transport people without necessitating a dedicated, space-consuming rooftop machine room. This architectural liberation proves exceptionally advantageous when constructing a modern commercial building, where every square meter profoundly impacts the project's overall financial viability and design constraints.

Beyond its spatial triumphs, this specialized traction machine delivers exceptional operational versatility across diverse environments. In sprawling residential buildings, the frictionless, gearless permanent magnet synchronous technology guarantees a virtually silent operation, ensuring that the inhabitants remain entirely undisturbed by the mechanical processes occurring within the shaft. Conversely, when deployed within towering high rise buildings characterized by relentless, high-volume passenger traffic, the robust electromagnetic architecture demonstrates formidable resilience. The system provides an incredibly smooth, vibration-free experience within the elevator car, actively mitigating the physiological discomfort frequently associated with rapid vertical acceleration and deceleration phases.

A critical operational parameter for any hoisting mechanism is its reliable weight capacity. Despite its exceptionally slender physical profile, the MRL Elevator Traction Machine | Bar Shaped Traction Motor generates tremendous rotational torque. The advanced rare-earth permanent magnets housed within the elongated casing ensure that the motor effortlessly accommodates substantial lifting payloads, seamlessly managing both standard passenger cabins and heavily laden service cars with unwavering precision.

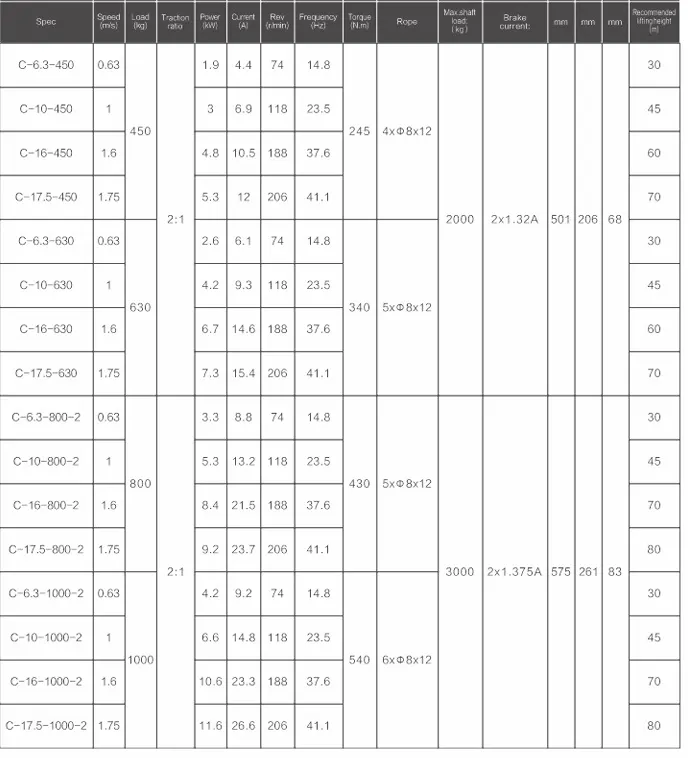

Technical Specifications:

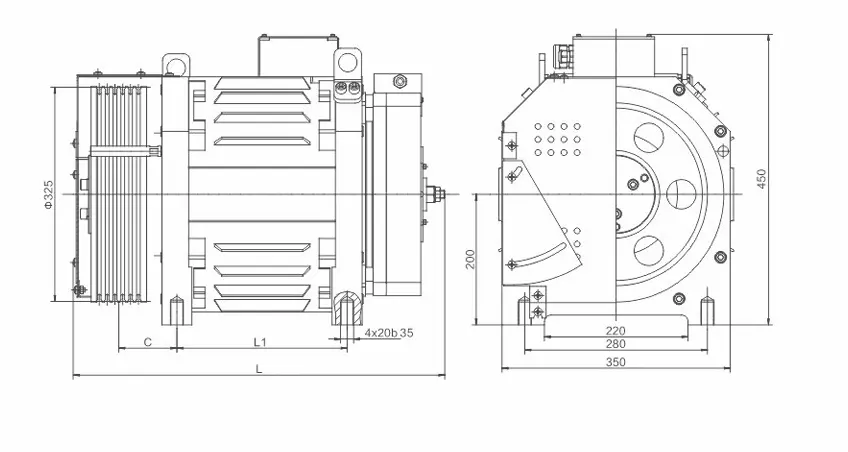

Dimensions:

This uncompromising lifting capability is meticulously balanced against rigorous ecological considerations. In an era increasingly defined by sustainable development, optimizing operational efficiency remains paramount. This bar-shaped motor drastically reduces overall energy consumption through the implementation of highly sophisticated Variable Voltage Variable Frequency (VVVF) inversion technologies. By precisely modulating the electrical current to match the instantaneous mechanical load, the system effectively eliminates superfluous power dissipation. Furthermore, the gearless nature of the machine eradicates mechanical friction losses inherent in legacy worm-gear systems, significantly lowering thermal output and bypassing the need for environmentally hazardous lubricating oils.

The deployment of this elongated motor also dramatically streamlines long-term facility maintenance protocols. The absence of a traditional gearbox fundamentally eliminates the requisite periodic oil replacements, thereby significantly reducing the total cost of ownership over the equipment's lifespan. Furthermore, the inherent safety mechanisms integrated into this slender architecture are genuinely state-of-the-art. Featuring dual-redundant electromagnetic braking calipers directly acting upon the traction sheave, the system guarantees instantaneous deceleration and absolute position holding during power failures. Ultimately, this represents a quantum leap in elevator technology, synthesizing spatial economy, robust lifting power, and uncompromising ecological responsibility into a singular, highly advanced mechanical package.
